Series 2000
2” Ceiling Grid Systems
Rod-Suspended, Gasket or Gel-Seal Ceilings
Superior Quality, Unparalleled Flexibility
For a full list of parts, please download our Gorilla Grid parts catalog
at the following link.
Overview
Gorilla Grid is the backbone of the SBB's ceiling system. It offers the fastest installing, most versatile and strongest system on the market and is available as a “turn key” solution from engineering to installation.
SBB's ceiling system is a proven way to save on installation costs, provide a working platform, mount room side equipment and add an efficient ceiling system to your work environment.
Perfect for commercial, industrial and other specialty applications.
- Semiconductor
- Microelectronic
- Medical Device
- Aerospace
- Healthcare
- Biotechnology
- Nano-Technology
- Research Laboratories
- Food & Beverage Processing
- Data Center Applications
Why Choose Gorilla Grid?

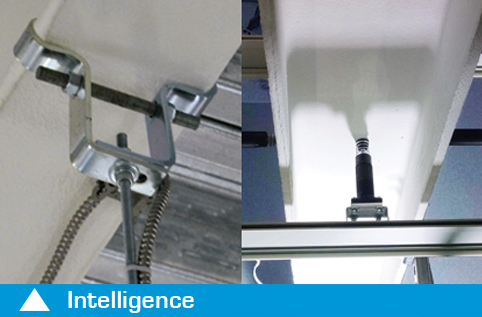

Gorilla Grid’s flexibility allows hangars to be mounted anywhere on the grid - ELIMINATING SUB STEEL STRUCTURES. In addition, the universal cross tee system allows for any grid sizing structure and multiple layout configurations.

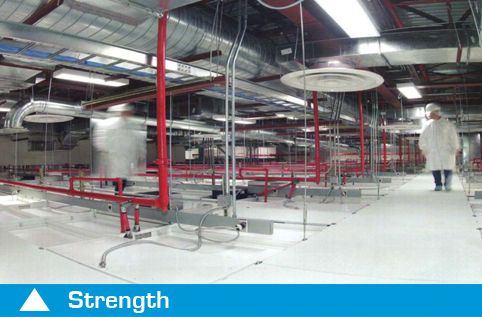

Gorilla Grid’s structural integrity reduces the number of hangars and hangar parts needed and allows it to be designed to meet weight-bearing and walkable ceiling requirements. Perfect for mounting room side equipment or eliminating cat walks or expensive service mezzanines.
Available options include, but are not limited to:
• Factory Engineered System (for single source
responsibility and ease of coordination)
• Blank panels
• Lights (LED)
• Integrated sprinkler systems
• Hanging supports/mechanisms
• Seismic dampers
• Terminal Devices
• Gasket Seals
Whatever your application needs, this system has a clean, well designed solution.
Parts
For a detailed parts list with specifications, please download our Gorilla Grid parts catalog
at the following link.
Main Grid Parts

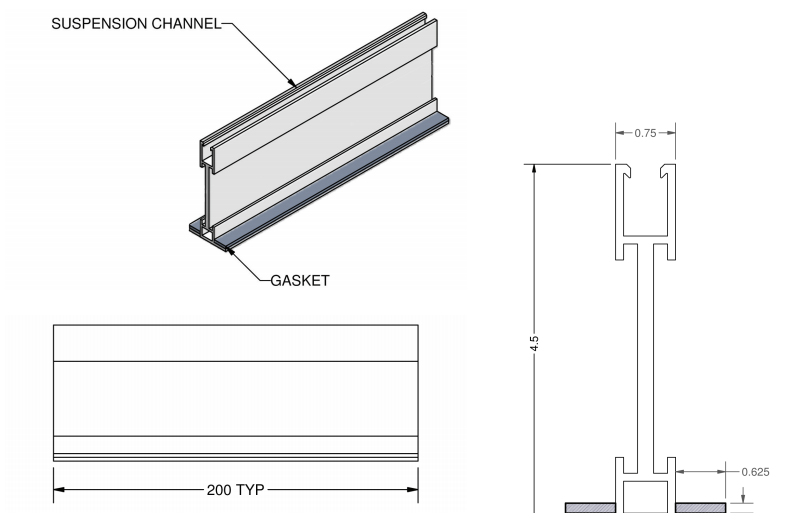

2045 Main 2045M-200-W503

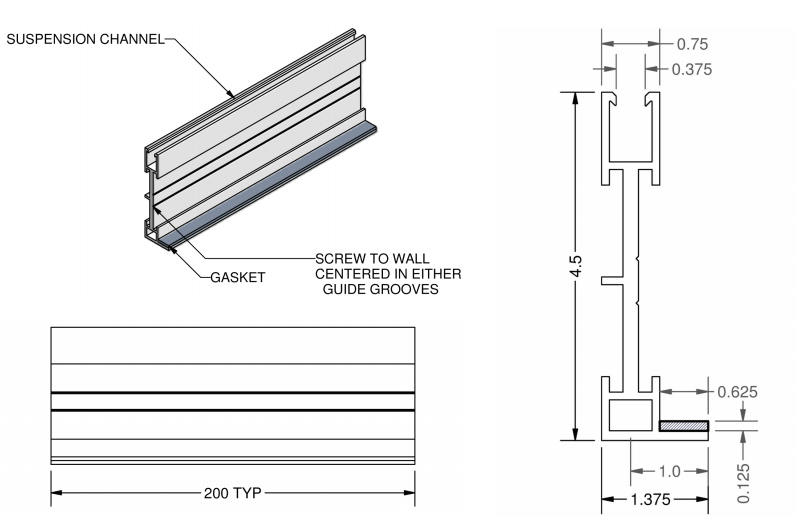

2045 Wall Start 2045WS-200-W503
2035 Cross Tee 2035XT-47-W503

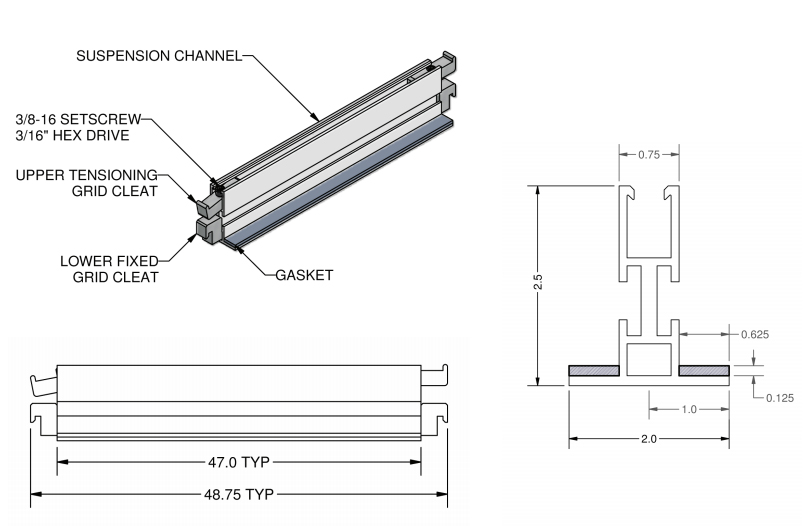

2025 Cross Tee 2025XT-47-W503
Hanging Parts

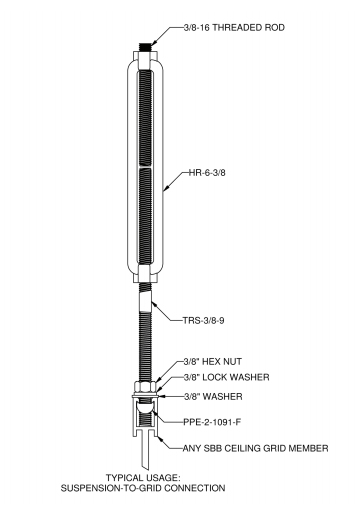

Standard 3/8" Hang Rod Assembly HRA-3/8

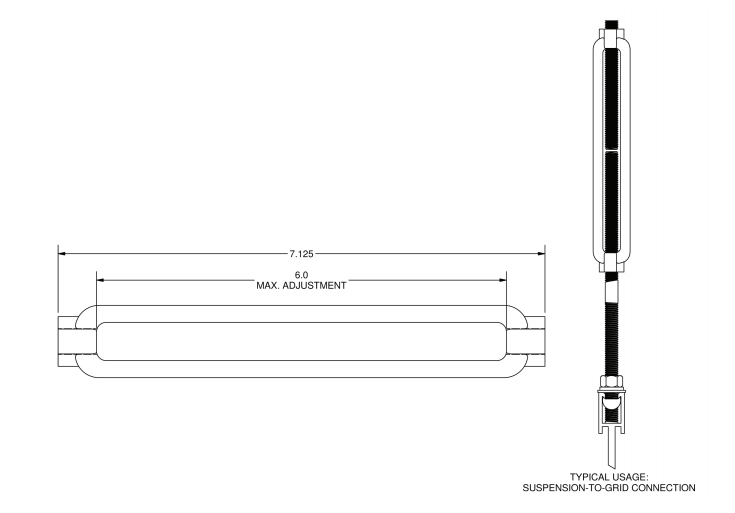

Turn Buckle 3/8" Thread TB-3/8
3/8" LH/RH Threaded Rod TRS-3/8-9

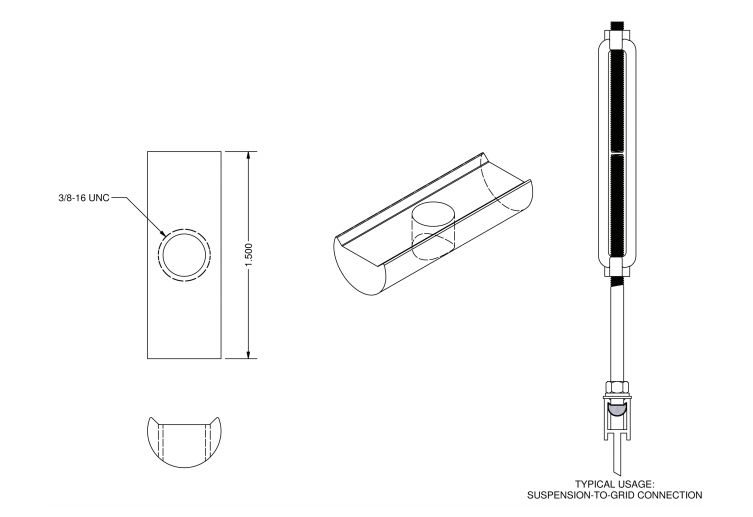

Grid Half Barrel Nut 3/8" Thread PPE-2-1091F
Connecting Parts

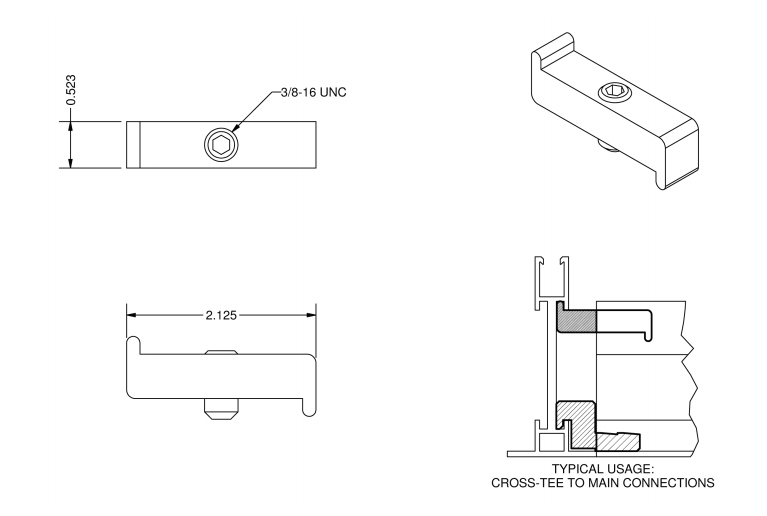

Cross Tee Rocker Connector PPE-1-1130F

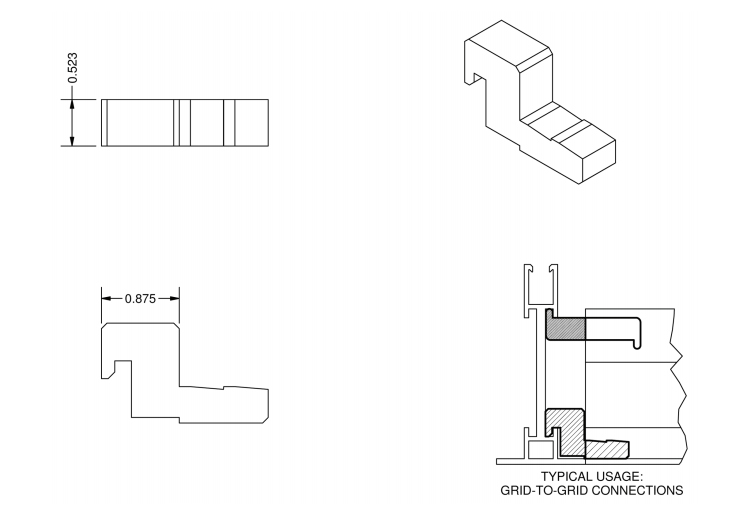

Grid-to-Grid Bottom Connector PPE-1-1093F

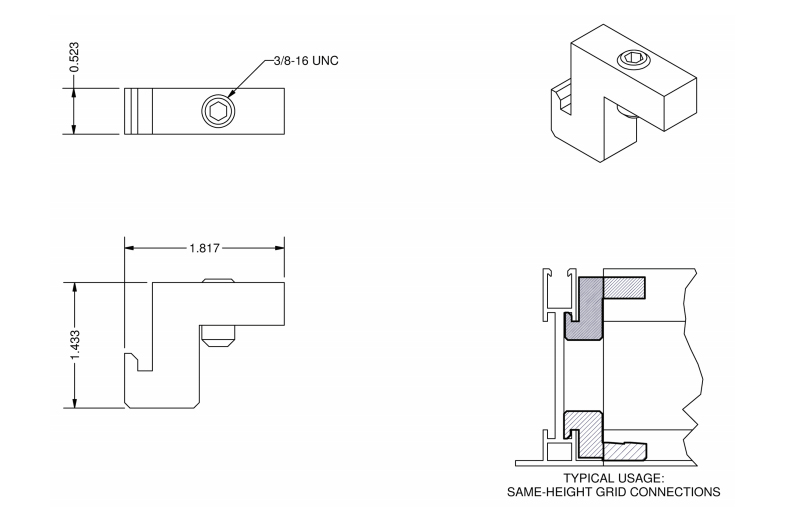

Like-to-Grid Top Connector PPE-1-1129F

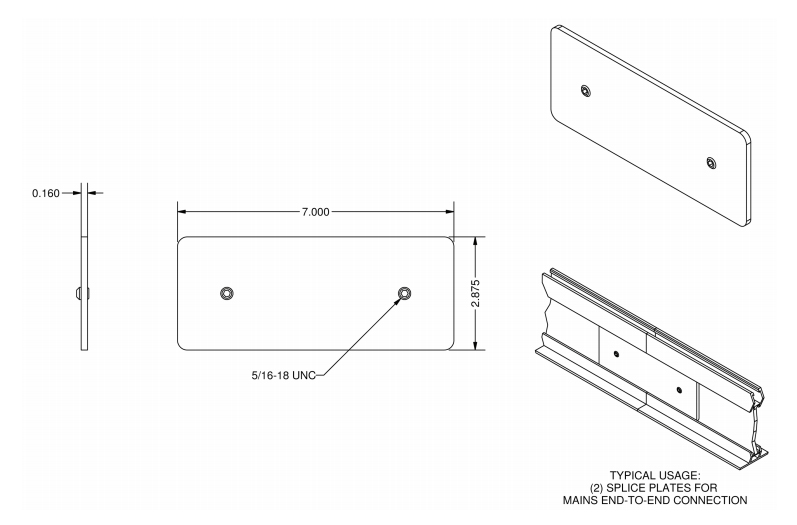

2045 Splice Plate SP-2045
Basic Panels

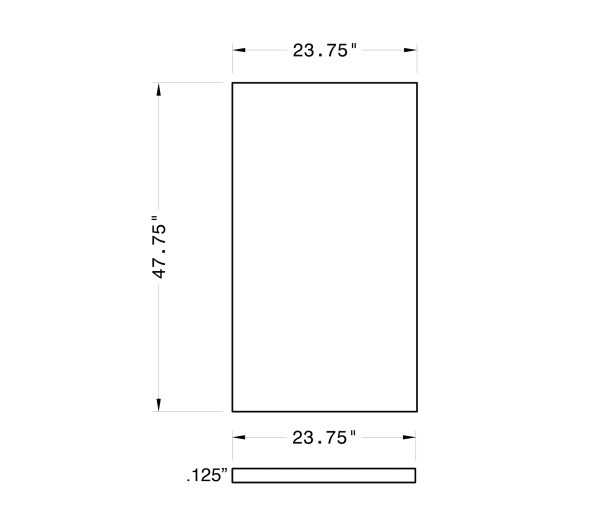

2'x4' Ceiling Panel PM-3mm-24x48

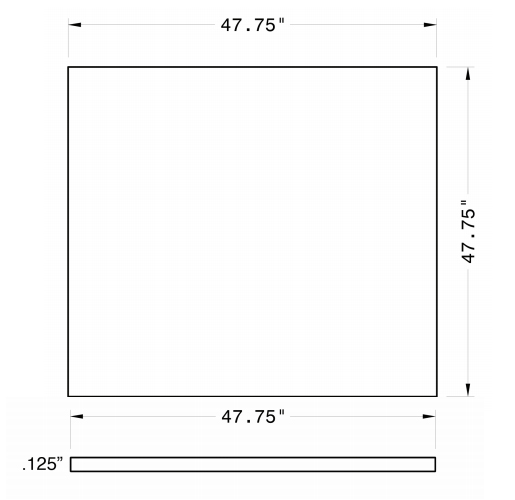

4'x4' Ceiling Panel PM-3mm-48x48
Lights

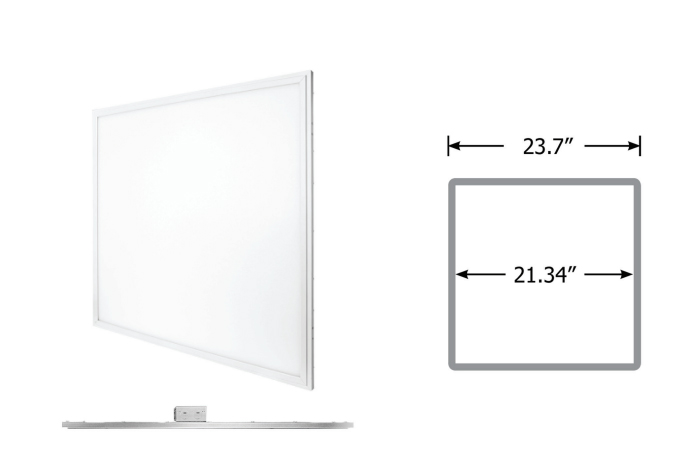

2'x2' LED Light Panel SLP2.2-40x
2'x4' LED Light Panel SLP2.4-50x
Walkable System

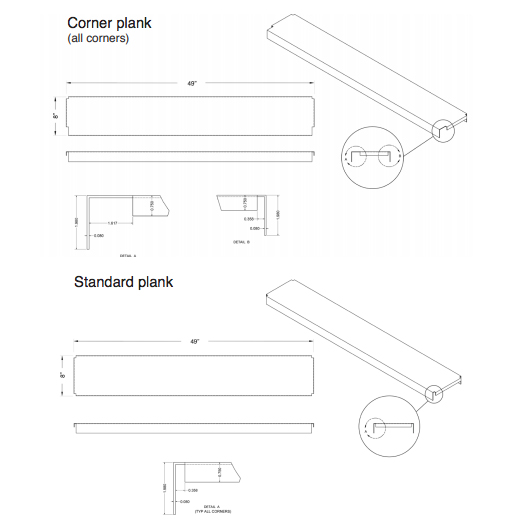

Walkable System WP-16G-48
